CNC Linishe Machine(32'' Bed)

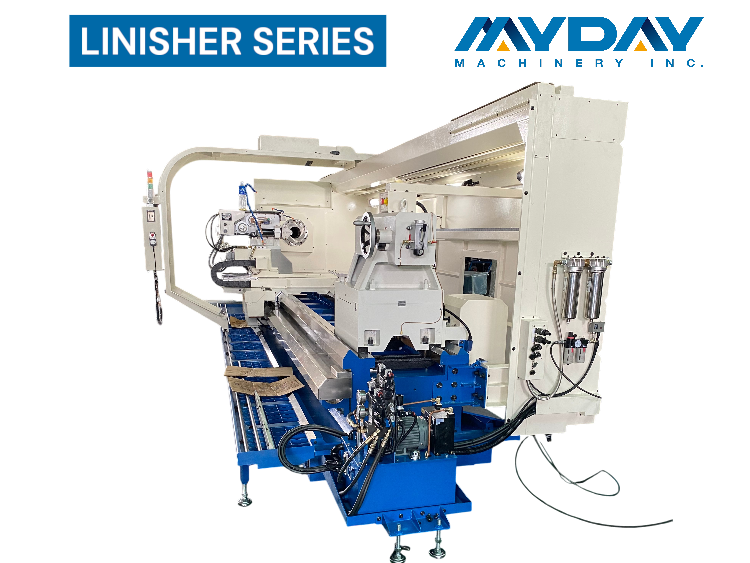

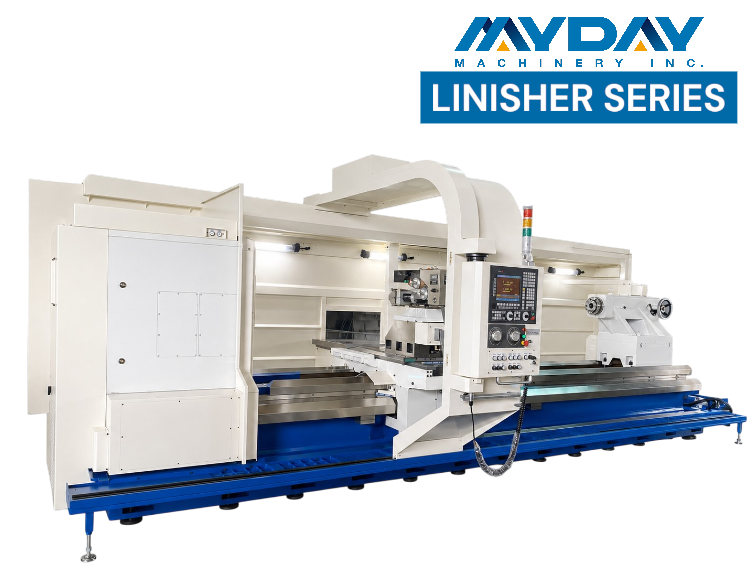

Developed from the SOH (32-inch bed) series, the TNC-1400X4000 B6 is a customized heavy-duty CNC turning and linishing composite machine. It is engineered for precision machining and surface finishing of large-scale workpieces.

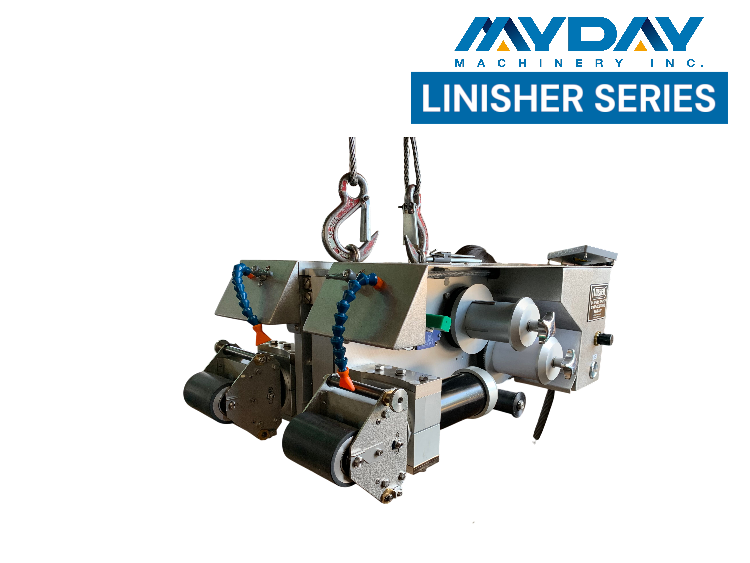

- Composite Functionality: Integrates CNC turning with the SF102 Double Belt Linishing system, enabling high-quality surface finishing and turning in a single setup.
- High-Performance Drive: Equipped with a 37 kW FAGOR servo motor and a 4-step hydraulic auto-gearshift gearbox, ensuring maximum torque across all speed ranges.
- Advanced CNC Control: Features the FAGOR 8055i control system (10.4-inch LCD) for reliable performance and intuitive operation.
- Heavy-Duty Engineering: Built on an 812 mm (32") wide bed, featuring a tailstock body towed by the carriage for enhanced efficiency and structural rigidity.
| Specifications (SOH-Based Customized) | |
|---|---|
| Swing Over Bed | 1400 mm |
| Bed Width | 812 mm (32") |
| Distance Between Centers (DBC) | 4000 mm |
| Spindle Bore | Ø 153 mm (6") |
| Spindle Speed | 6-800 rpm (4-Step Hydraulic Auto-Gearshift) |
| Main Motor | 37 kW (FAGOR Servo Motor) |
| CNC Controller | FAGOR 8055i (10.4" LCD) |
| Quill Diameter | Ø 200 mm (Tailstock Body Towed by Carriage) |
| Special Configuration | Integrated SF102 Double Belt Linishing System (Customized) |
