Grinding Machine(16'' Bed)

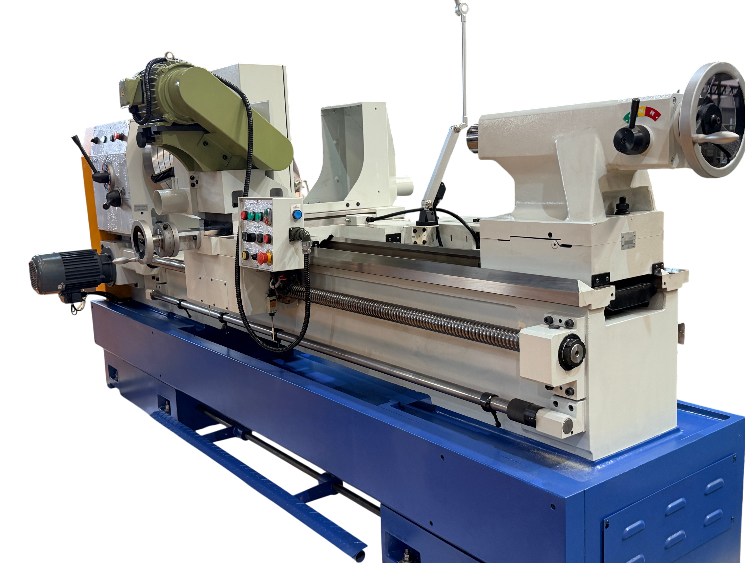

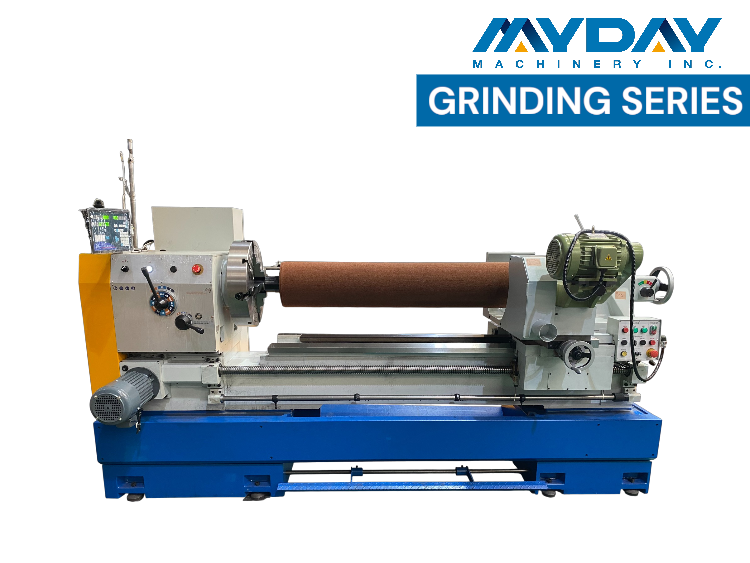

The MPA670.15.3 is a customized grinding lathe developed from MYDAY’s standard MPA 16" bed series. To meet high-precision shaft grinding requirements, the machine was reconfigured from a conventional lathe structure into a dedicated reciprocating grinding platform, with the feed mechanism, saddle balance, and spindle setup modified specifically for stable grinding operation.
This project was developed for a Japanese corporate client in Malaysia, with the final configuration confirmed after technical inspection in Taiwan. MYDAY integrated an automatic reciprocating feed system, travel-limit automatic reversal, and grinding-specific structural adjustments to support a fully automated grinding cycle.
The machine passed the client’s on-site acceptance process and demonstrated stable vibration control, consistent reciprocating motion, and reliable surface finishing performance for precision industrial grinding applications.
| Specifications (MPA-Based Customized Grinding Lathe) | |
|---|---|
| Swing Over Bed | 670 mm (26") |
| Bed Width | 406 mm (16") |
| Distance Between Centers (DBC) | 1500 mm |
| Spindle Bore | Ø 80 mm (3") |
| Spindle Nose | A2-8 |
| Spindle Speed | 160 rpm (Fixed Grinding Speed / Customized) |
| Quill Diameter | Ø 80 mm |
| Quill Taper | MT#5 |
| Main Motor | 15 HP |
| Feed System | Automatic Reciprocating Feed System with Variable-Frequency Motor Control (Travel-Limit Reversal / Customized) |
| Grinding Wheel Specification | 305 x 25 x 101.6 mm (Diameter x Width x Bore) |
| Saddle Balance | Precision Counterweight Behind Saddle (Customized) |
| Digital Readout (DRO) | 2-Axis DRO |
