Question 1

What does 'Swing Over Bed' specification mean?

Accepted Answer

Swing Over Bed indicates the maximum diameter of workpiece that can be machined on the lathe. It is measured as twice the center height. For example, a lathe with 300mm center height has 600mm swing over bed, meaning it can handle workpieces up to 600mm in diameter.

Question 2

What is Distance Between Centers (DBC) and why is it important?

Accepted Answer

Distance Between Centers (DBC) is the maximum length of workpiece that can be held between the headstock and tailstock. MYDAY offers standard DBC options ranging from 1500mm to 4000mm, with custom lengths available upon request for special applications.

Question 3

What is the difference between M-series and S-series lathes?

Accepted Answer

M-series are conventional (manual) lathes with mechanical transmission, suitable for skilled operators and varied production. S-series are CNC lathes with computer numerical control, offering automated operation, higher precision, and better repeatability for complex or high-volume production.

Question 4

Can MYDAY customize lathe specifications beyond standard offerings?

Accepted Answer

Yes, MYDAY specializes in custom configurations. We can modify swing capacity, add grinding or polishing devices to any model, provide custom DBC lengths, upgrade to four-rail configurations on SOC/SOH models, and tailor spindle specifications. Contact us with your specific requirements for a custom solution.

Question 5

Which CNC controller options does MYDAY offer?

Accepted Answer

MYDAY CNC lathes are available with FANUC 0i-TF, FAGOR 8055i, or SIEMENS 828D controllers. Each offers reliable performance with different interface preferences. We can recommend the best controller based on your operator experience and integration requirements.

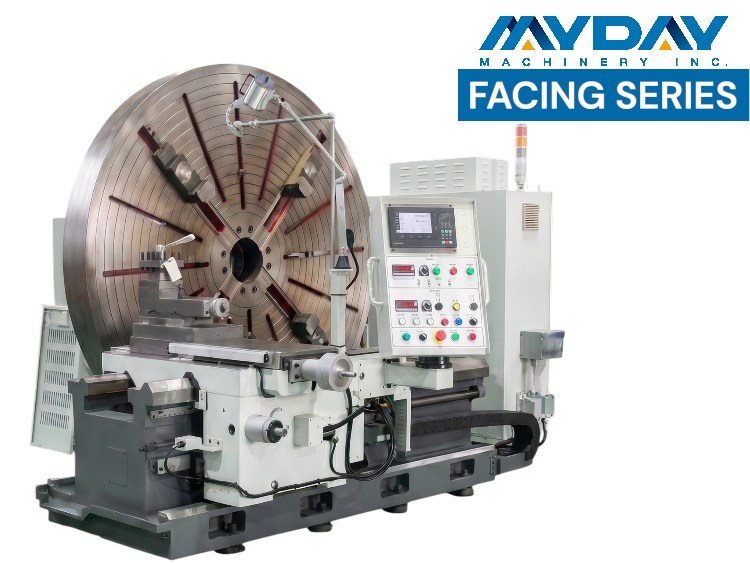

MFC2000.15.9 Specifications (MOC-Based Customized)
Center Height	1060 mm
Swing Over Bed	2000 mm (Customized)
Bed Width	560 mm (22”)
Distance Between Centers (DBC)	1500 mm
Spindle Bore	Ø 230 mm (9")
Spindle Nose	A2-15
Spindle Speed	4-600 rpm (4-Step Gearbox / Customized)
Quill Diameter	Ø 140 mm
Quill Taper	MT#6
Main Motor	25 HP
Feed System	Servo Motor Driven (ACS / Dial Control Knob) (Customized)
Digital Readout (DRO)	FAGOR 40i TS (Optional CSS Function)
