Auto Rapid Threading
Auto Rapid Threading Function
Automated Threading CycleThis function makes threading cycles more intuitive and efficient. With automatic forward feed, tool retract, and return-to-start motions, operators can run consistent threading passes with less manual handling.
Key Features
- Automatic carriage forward/retract: at each cycle start, the operator only needs to increase the depth of cut.
- Driven by a hydraulic cylinder.
- Feed transmission is completed via half nuts and the lead screw—proven and reliable mechanics.
Top 3 Benefits
- Auto forward: returns to the previous cutting diameter position for smoother operation.
- Auto retract: travel switches/sensors manage the tool path to reduce interference risk.
- Auto return: the hydraulic cylinder pulls the carriage back to the start point, saving cycle time.
* Images are for illustration and reference. Actual configuration may vary by model/options.

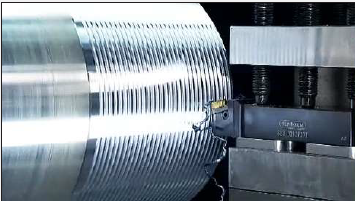

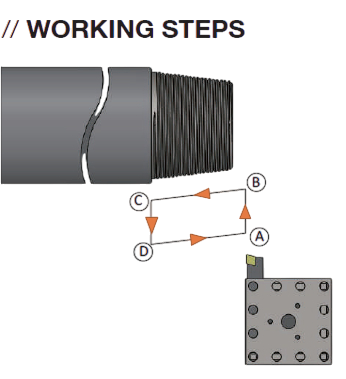

Diagram / Real Case
