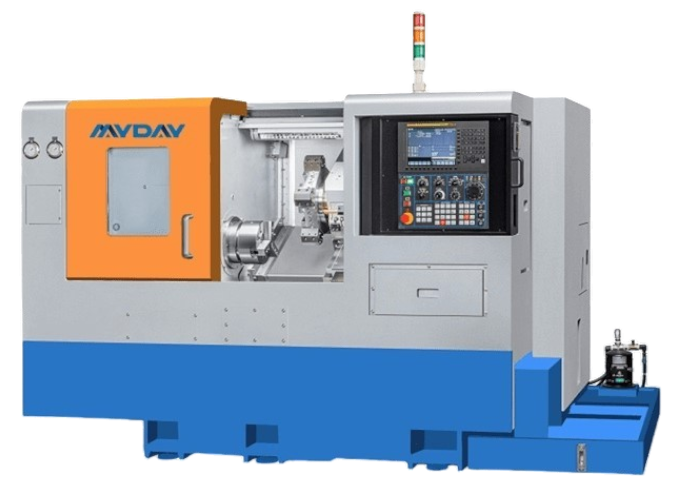

Turning Center- TB8 & TB8C
| Description / Model |
TB8 |
TB8C |
|
|---|---|---|---|
|
Swing over Bed |
545 mm |
||
|
Over Cross Slide |
350 mm |
||
|
Max. Turning Dia |
380 mm |
250 mm |
|
|
Max. Work Length |
500/750/1000 mm |
||
|
Chuck Size |
8" |
||
|
Draw Tube Dia |
ø52 mm |
||
|
Spindle Speed Range |
4800 rpm |
||
|
Spindle Nose |
A2-6 |
||
|
Spindle Bore |
ø62 mm |
||
|
Front Bearing Dia |
ø100 mm |
||
|
Spindle Taper |
1/20 |
||
|
Milling Speed |
- |
6000 rpm |
|
|
X-Axis Travel |
200 mm |
200 mm |
|
|
Z-Axis Travel |
530/780/1030 mm |
||
|
Controller |
FANUC 0i-TF3 / SIEMENS 828D |
||
|
Spindle Motor |
11 KW |
||
|
X-Axis Rapid Traverse |
20m/min |
||
|
Z-Axis Rapid Traverse |
20m/min |
||
|
Guideway Type |
Box way/30∘ |
||
|
Numbers of Tool Station |
10T |
12T |
|
|
O.D. Tool |
□25 mm |
□20 mm |
|
|
Boring Bar Dia |
ø40 mm |
ø32 mm |
|
|
Quill Dia |
ø90 mm |
||
|
Quill Travel |
85 mm |
||
|
Tailstock Travel |
460/710/960 mm |
||
|
Quill Taper |
MT#5 |
||
|
Power Supply |
30 kva |
||
|
Coolant Tank Capacity |
125 L |
||
|
Coolant Flow |
30 L/mm |
||
|
Machine Height (H) |
1700 mm |
||
|
Floor Space (L) |
2300/3100/3900 mm |
||
|
Floor Space (W) |
1500 mm |
||
|
Net Weight |
4300/4900/5500 KG |
||
