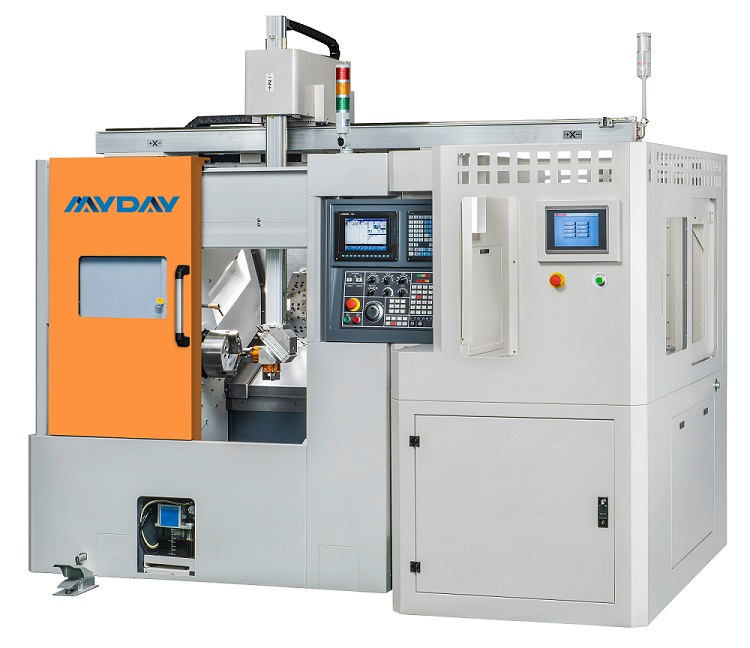

Turning Center - TA8 & TA8C
| Description / Model |
TA8 |
TA8C |
|
|---|---|---|---|
|
Swing over Bed |
505 mm |
||
|
Over Cross Slide |
345 mm |
||
|
Max. Turning Dia |
380 mm |
250 mm |
|
|
Max. Work Length |
270 mm |
228 mm |
|
|
Chuck Size |
8" |
||
|
Draw Tube Dia |
ø52 mm |
||
|
Spindle Speed Range |
4500 rpm |
||
|
Spindle Nose |
A2-6 |
||
|
Spindle Bore |
ø62 mm |
||
|
Front Bearing Dia |
ø100 mm |
||
|
Spindle Taper |
1/20 |
||
|
Milling Speed |
- |
6000 rpm |
|
|
X-Axis Travel |
225 mm |
225 mm |
|
|
Z-Axis Travel |
290 mm |
||
|
Controller |
Fanuc 0i-TF3 / Siemens 828D |
||
|
Spindle Motor |
11 Kw |
||
|
X-Axis Rapid Traverse |
15m/min |
||
|
Z-Axis Rapid Traverse |
18m/min |
||
|
Guideway Type |
Box way/30∘ |
||
|
Numbers of Tool Station |
10T |
12T |
|
|
O.D. Tool |
□25 mm |
□20 mm |
|
|
Boring Bar Dia |
ø40 mm |
ø32 mm |
|
|
Quill Dia |
ø58 mm |
||
|
Quill Travel |
88 mm |
||
|
Tailstock Travel |
190 mm |
||
|
Quill Taper |
MT#4 |
||
|
Power Supply |
21 kva |
25 kva |
|
|
Coolant Tank Capacity |
110 L |
||
|
Coolant Flow |
60 L/mm |
||
|
Machine Height |
1930/3264(A) mm(H) |
||
|
Floor Space |
1626/2593(A) mm(L) |
||
|
Floor Space |
1487/1700(A) mm(W) |
||
|
Net Weight |
3350/3510(A) kg |
||
