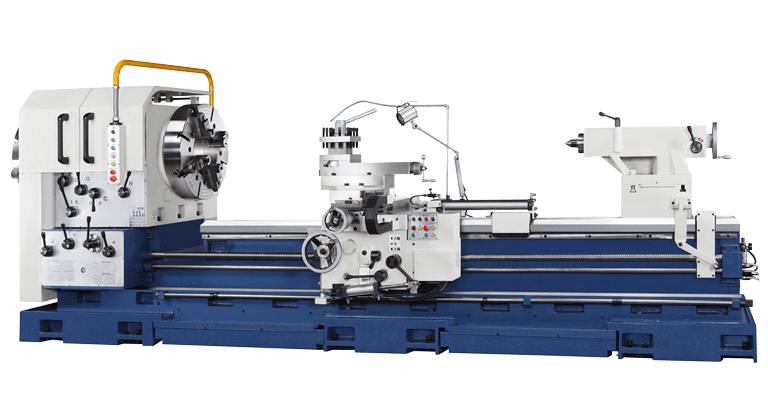

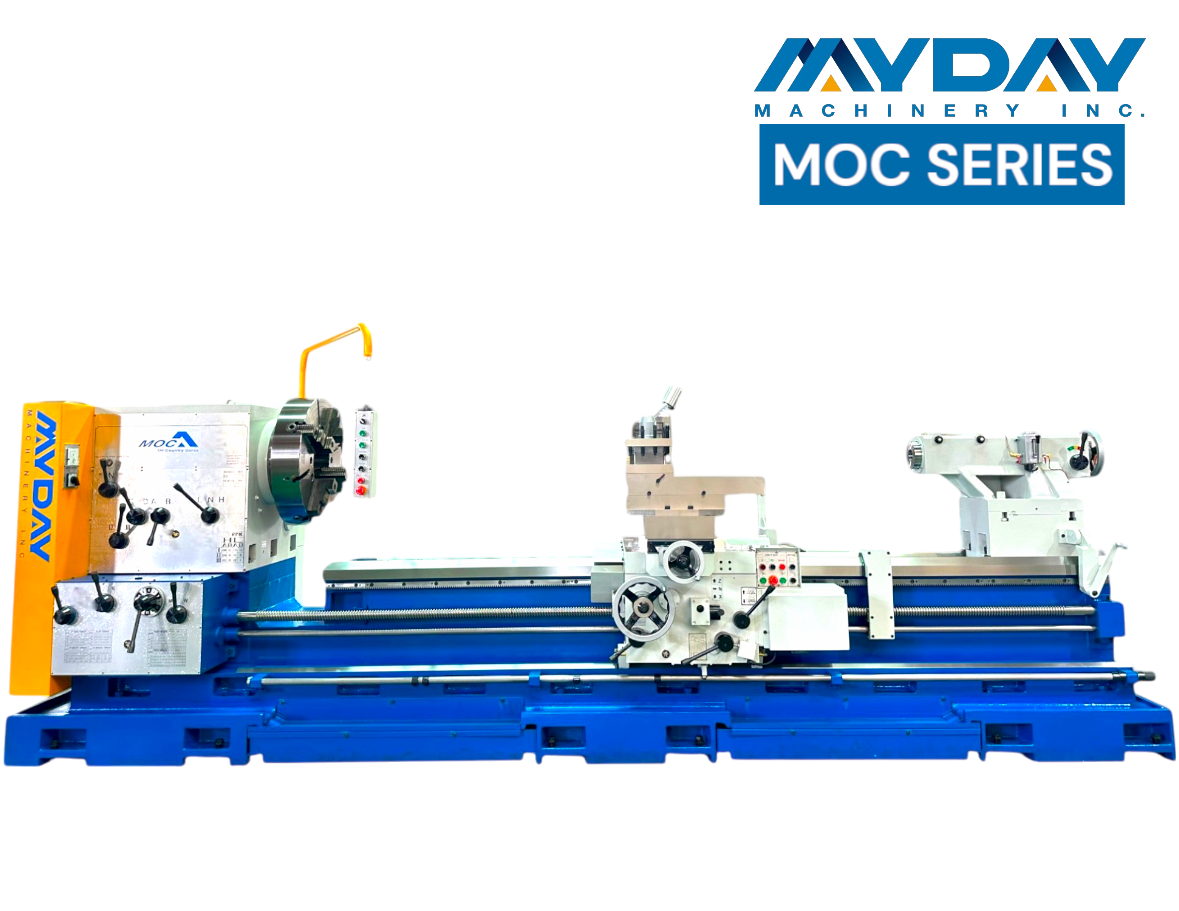

Oil Country Lathe (22” Bed)
Oil country lathe is a famous product line for oil & gas fielding and metal industry.
It could be big bore lathe of double chucks at both sides of the headstock,
or it could have large swing for big workpiece.
or it could have large swing for big workpiece.

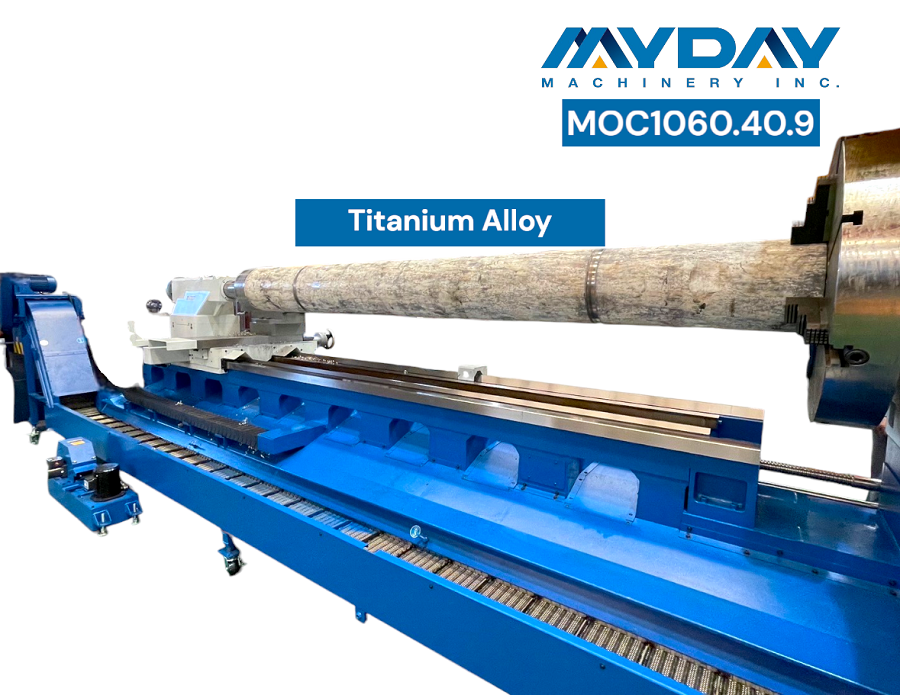

Big bore lathe is very good at threading and cuttingat the two ends of long pipes or tubes.
Large swing could be applied to big steel rollers,large diameter flanges, long shafts of ships, etc.

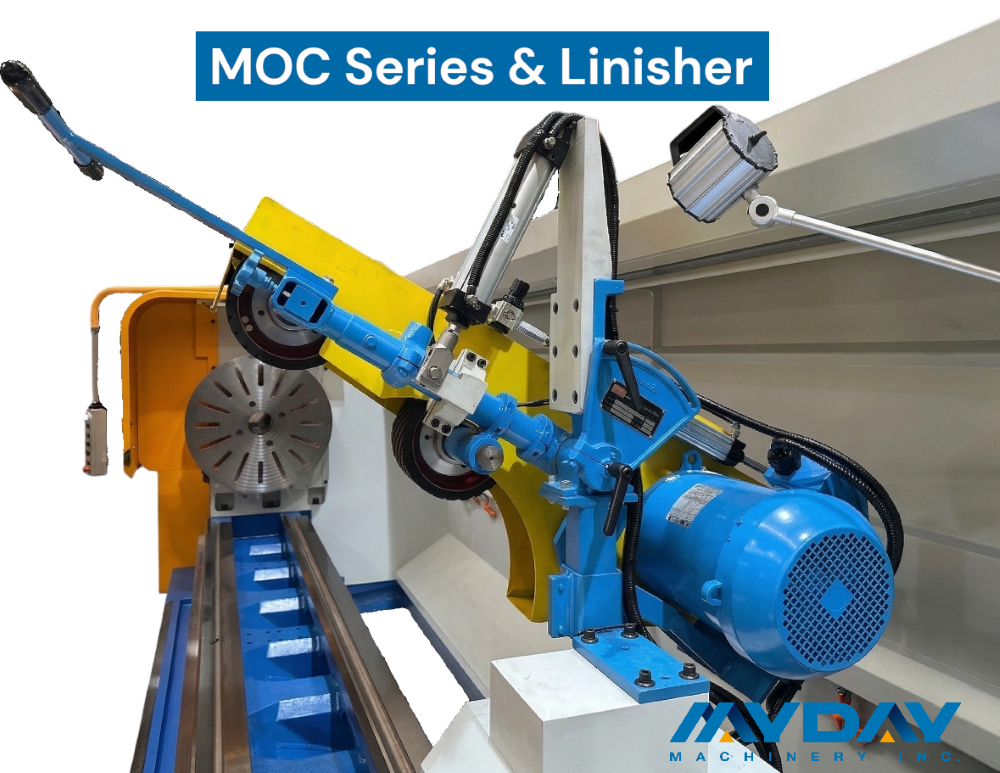

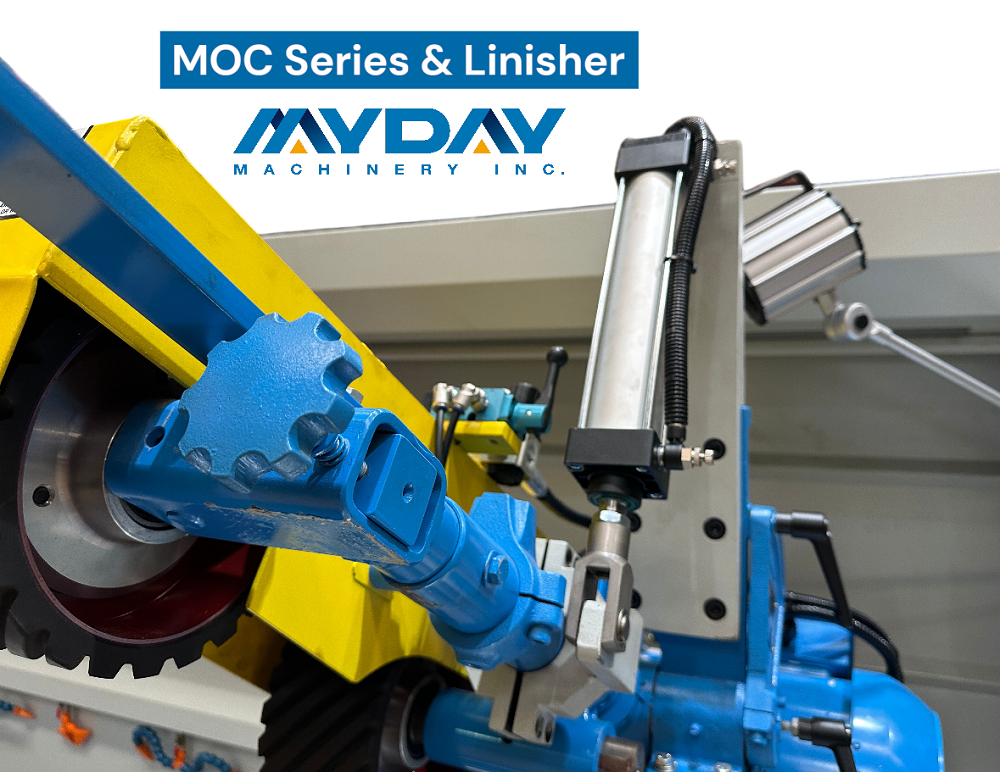

Also, for better workpiece clamping, rotary quill is an option on tailstocks.
| Description / Model | MOC960 | MOC1060 | MOC1200 |
|---|---|---|---|
| Center Height |
480 mm
|
530 mm
|
600 mm
|
| Swing over Bed | 960 mm | 1060 mm | 1200 mm |
| Swing over Cross Slide | 650 mm | 750 mm | 890 mm |
| Swing over Gap | 1510 mm | 1610 mm | 1750 mm |
| Width of Gap | 570 mm (No gap if Distance Between Centers ≥ 5m) | ||
| Width of Bed | 560 mm (22”) (600 mm with Auxiliary Guideway) | ||
| Distance Between Centers | 1500~9000 mm | ||
|
Spindle Bore |
Ø156mm (6”) / Ø230mm (9”) / Ø260mm (10”) / Ø310mm (12”) / Ø360mm (14”) |
||
| Spindle Nose | A2-11 / A2-15 / A2-15 / A2-20 / A2-20 | ||
| Spindle Speeds (12 Steps) | 9-600 / 6-400 / 6-400 / 5-300 / 5-300 | ||
| Tailstock Quill Diameter | Ø200 mm / Ø290 mm(Opt. Rotary Quill) | ||
| Taper of Center | MT#7 | ||
| Quill Travel | 300 mm | ||
| Cross Feeds | 0.065-0.96 (48 Kinds) | ||
| Cross Travel | 540 mm | ||
| Compound Rest Travel | 300 mm | ||
| Tool Size | 40 x 40 mm | ||
| Longitudinal Feeds | 0.13-1.92 (48 Kinds) | ||
| Lead Screw Diameter | Ø50mm | ||
| Lead Screw Pitch | 2TPI (inch) or 12mm (Metric) | ||
| Threading Range, Metric | 2-30 mm/Pitch (48 Kinds) | ||
| Threading Range, Inch | 1-15 TPI (48 Kinds) | ||
| Module Pitch Threads | 1-15M (32 Kinds) | ||
| DP. Pitch Threads | 2-30P (48 Kinds) | ||
| Main Spindle Motor | 25 HP (Std.) or 30 HP (Opt.)) | ||
| Rapid Motor | 1/2 HP | ||
| Coolant Pump | 1/4 HP | ||
| Oil Pump | 12W | ||
| 32" Standard Accessories | 32” Optional Accessories |
|---|---|
| Main Motor | 3-Jaw Scroll Chuck |
| Spindle Magnetic Brake | 4-Jaw Chuck |
| Auto Lubrication System | 4-Jaw Face Plate |
| Coolant System | Double Chuck System |
| 4-Way Tool Post | Steady Rest |
| X, Z Axes Rapid Traverse | Follow Rest |
| Meter / Inch Community Gear Box | Rear Supporting Stand |
| Guideways Hardened, Ground with Wipers | Quick Change Tool Post |
| Tailstock Center | Auto Threading Device |
| Tool Box with Tools | Boring Device |
| Leveling Bolts & Pads | Taper Attachment |
| Operation & Service Manual | Hydraulic Copy Device |
| Work Light | 6-way Rapid Traverse |
| Digital Readout | |
| Rotary Center | |
| Hydraulic Spindle Pin-Locking |
The specifications listed are for reference only. MYDAY reserves the right to make changes at any time without prior notice."
