Heavy Duty 4 Guide-Way Large Lathe (52” Bed) | MGF Series | MYDAY

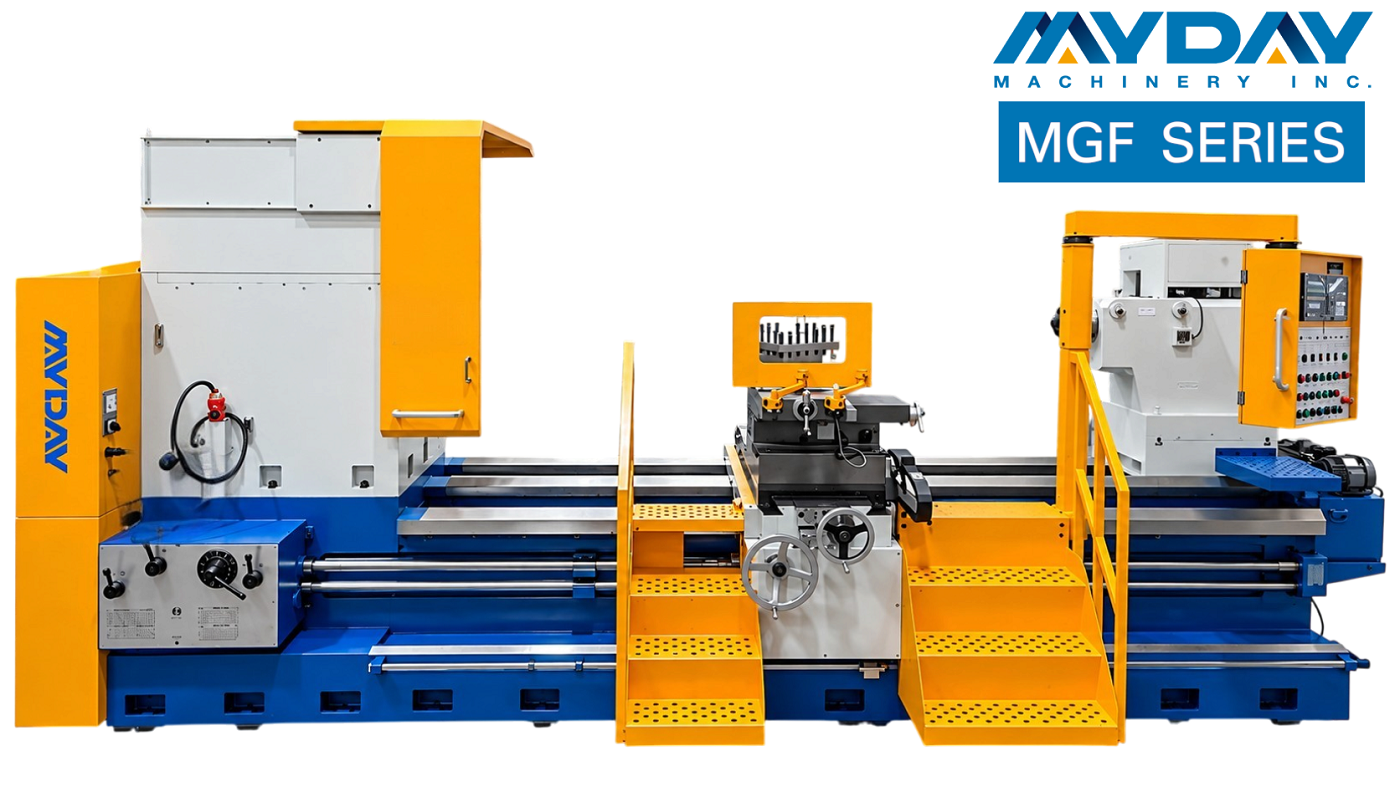

The MYDAY MGF Series is a heavy-duty four-guideway large lathe designed for machining large-diameter, long, and heavy workpieces. Its extra-wide flat bed features two pairs of guideways, providing exceptional rigidity and stability for heavy cutting and large workpiece machining. The tailstock and steady rests are mounted on the rear guideways, while the carriage and full-length cross slide travel across all four guideways. This four-guideway construction provides enhanced structural support and allows the cross slide to maintain high rigidity throughout its full travel, ensuring stable and precise cutting performance even under heavy loads.
With its robust construction, large swing capacity, full-length cross slide, and excellent machining stability, the MGF Series is ideally suited for large shafts, steel mill rolls, rollers, energy equipment, shipbuilding components, and other large industrial workpieces requiring heavy-duty turning.
| Description / Model | MGF1800 | MGF2000 | MGF2250 | MGF2500 | |
|---|---|---|---|---|---|
| Center Height | 900 mm | 1000 mm | 1125 mm | 1250 mm | |
| Swing over Bed | 1800 mm | 2000 mm | 2250 mm | 2500 mm | |
| Swing over Cross Slide | 1350 mm | 1550 mm | 1800 mm | 2050 mm | |
| Full Length Carriage (Std.) | |||||
| Swing over Cross Slide | 1440 mm | 1630 mm | 1870 mm | 2110 mm | |
| Half Length Carriage(Opt.) | |||||
| Width of Bed | 1345 mm (52.9”) (1575mm with Auxiliary Guideway) | ||||
| Distance Between Centers | 3000 mm~12000 mm | ||||
| Spindle Bore / Nose | Ø210 mm/A2-15 (Std.) or A2-20 (Opt.) | ||||
| Spindle Speed (4 Steps) | 5 ~400 rpm (Infinite Adjustment by Inverter) | ||||
| Tailstock Quill Diameter | Ø290 mm Heavy Duty Rotary Quill (Std.)or Ø350mm (Opt.) | ||||
| Taper of Center | MT#7 | ||||
| Quill Travel | 300 mm | ||||
| Cross Feeds | 0.065 ~ 0.96 ( 48 Kinds ) | ||||
| Cross Travel | 1250 mm (Full Length) or 510mm (Half Length) | ||||
| Longitudinal Feeds | 0.13 ~ 1.92 ( 48 kinds ) | ||||
| Compound Rest Travel | X1: 250mm / Z1: 350mm (Auto Feeding) | ||||
| Tool Size | 50 X 50 mm | ||||
| Lead Screw Diameter | Ø60 mm | ||||
| Lead Screw Pitch | 2TPI (Inch) or 12mm (Metric) | ||||
| Threading Range, Metric | 2 ~ 30 mm / Pitch ( 48 Kinds ) | ||||
| Threading Range, Inch | 1 ~ 15 TPI ( 48 Kinds ) | ||||
| Main Spindle Motor | 75 HP (Std.) or 100 HP (Opt.) | ||||
| Rapid Motor | 2 HP | ||||
| Coolant Pump | 1 HP | ||||
| 52” Standard Accessories | 52” Optional Accessories |
|---|---|
| Main Motor with Inverter | 3-Jaw Scroll Chuck |
| Hydraulic Spindle Disk Brake | 4-Jaw Chuck |
| Auto Lubrication System | 4-Jaw Face Plate |
| Coolant System | Steady Rest |
| 4-Way Tool Post | Heavy Duty Steady Rest |
| Leveling Bolts & Pads | Boring Device (only for Full-Length Cross-Slide) |
| 6-Way Rapid Traverse | Digital Readout |
| Metric / Inch Community Gear Box | Electrical System for CE or CSA |
| Tailstock Dead Center | |
| Tailstock Rotary Quill Ø290mm | |
| Motorized Tailstock | |
| Tool Box with Tools | |
| Operation & Service Manual |
The specifications listed are for reference only. MYDAY reserves the right to make changes at any time without prior notice."
