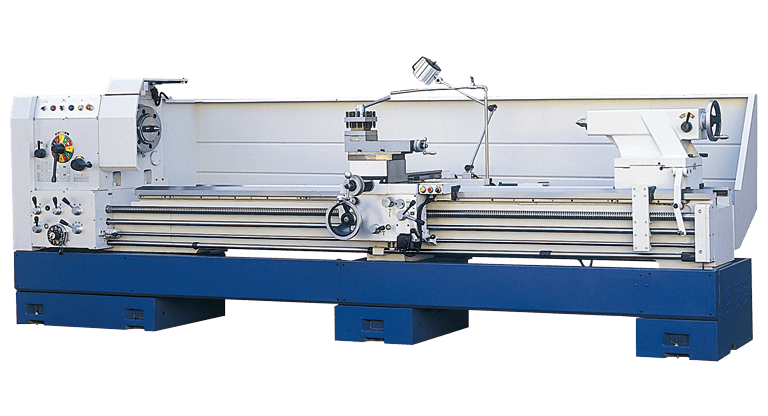

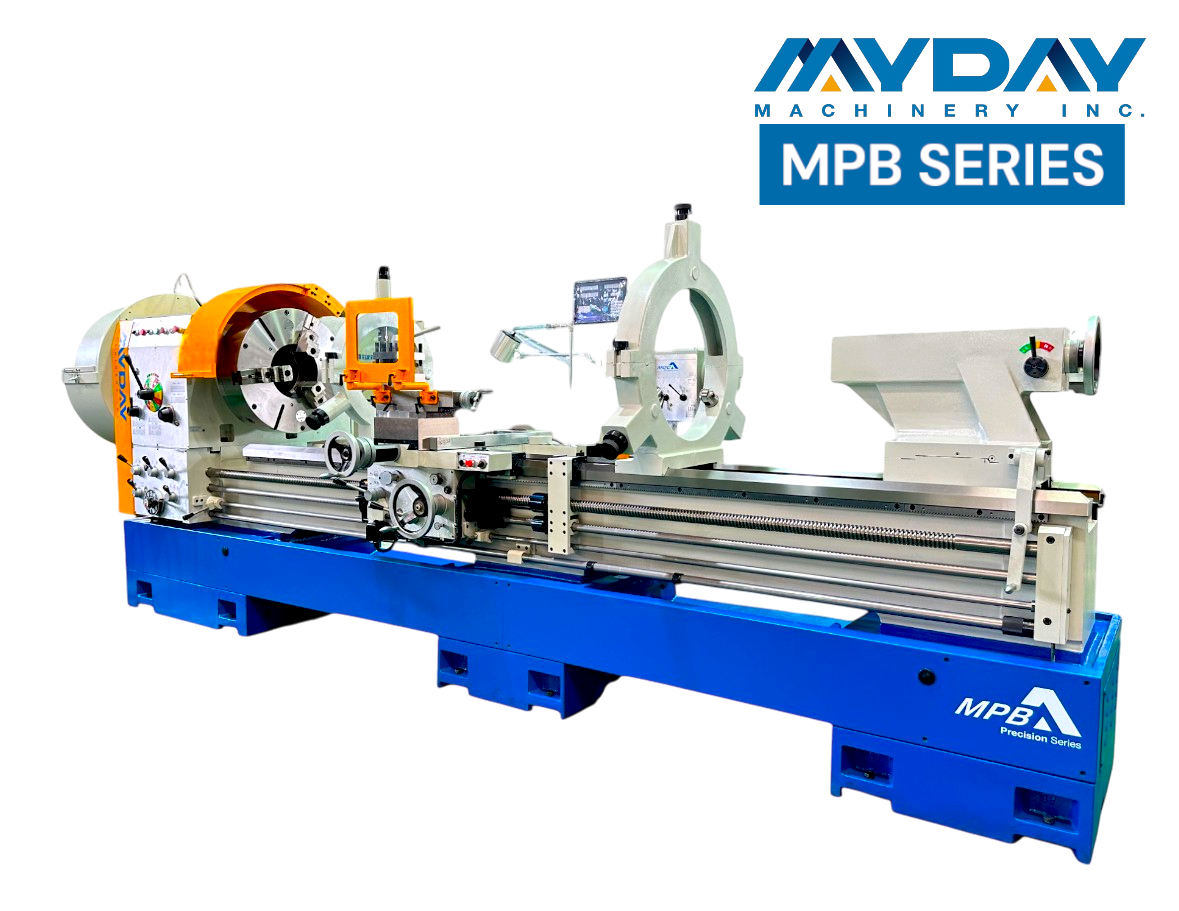

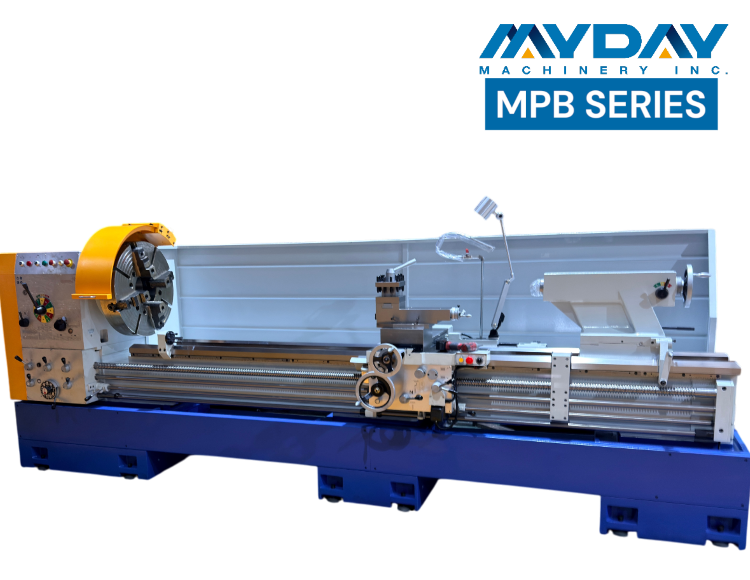

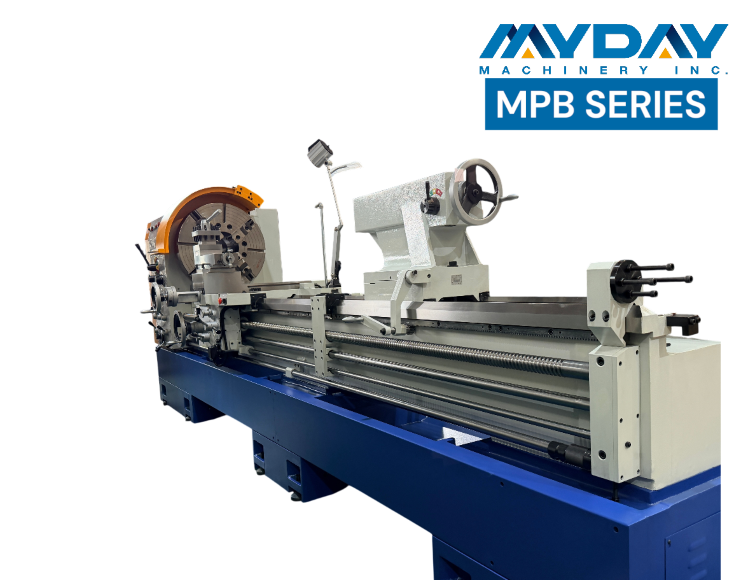

Heavy Duty Oil Country Lathe(18” Bed)

Heavy Duty Precision Lathe is a very popular product line in metal industry.
The spindle motor power in the series is transmitted to the spindle through pulley, belt and 12-step gear sets.
It could perform heavy duty machining with high speed and high rigidity.

Description \ Model MPB670 MPB770 MPB840
Center height 335 mm 385 mm  420 mm
Swing over bed 670 mm 770 mm 840 mm
Swing over cross slide 460 mm 560 mm 630 mm
Swing over gap 890 mm 990 mm 1060 mm
Width of gap                        450 mm
Width of bed                               460 mm (18”)
Distance between centers 1500 (60”), 2000 (80”), 3000 (120”), 4000 (160”), 5000 (200”)
Spindle bore Ø104 mm (4”) / Ø156 mm (6”) / Ø230 mm (9”)
Spindle nose A2-11, D1-11 (4” or 6”) / A2-15 (9”)
Spindle speeds (12 Steps) 15-1000/ 13-800  /10-600 rpm
Tailstock quill diameter  Ø95 mm
Taper of center  MT#5
Quill travel 230 mm
Tool size 25 x 25 mm
Compound rest travel 230 mm
Cross slide travel 385 mm 435 mm
Cross feeds 0.025-0.35 mm (36 Kinds)
Longitudinal feeds 0.05-0.7 mm (36 Kinds)
Lead screw diameter Ø45 mm
Lead screw pitch 2TPI (inch) or 12mm (metric)
Threading range, metric 0.8-14 mm / Pitch (65 Kinds)
Threading range, inch 2-28 TPI (36 Kinds)
Module pitch threads 0.5-7 M (22 Kinds)
DP. pitch threads 4-56 P (36 Kinds)
Main spindle motor 20 HP(Opt.in 18'' Bed series)
Coolant pump  1/8 HP





18”STANDARD ACCESSORIES 18”OPTIONAL ACCESSORIES
Main Motor 3-Jaw Chuck
Auto Lubrication System 4-Jaw Chuck
Coolant System Face Plate
4-Way Tool Post Double Chuck System
Leveling Bolts & Pads Steady Rest
Main Spindle Sleeve Follow Rest
Main Spindle Center Rear Tool Post
Tailstock Center Micro Bed Stopper
Meter / Inch Community Gear Box Taper Attachment
Tool Box with Tools Quick Change Tool Post
Independent Electrical Box Digital Readout
Operation & Service Manual Rotary Center
Work Light Electrical System for CE
  Splash guard
