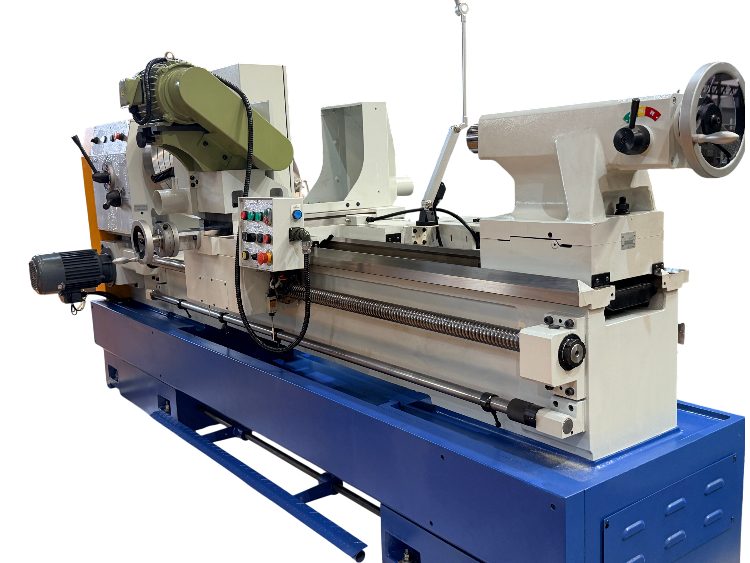

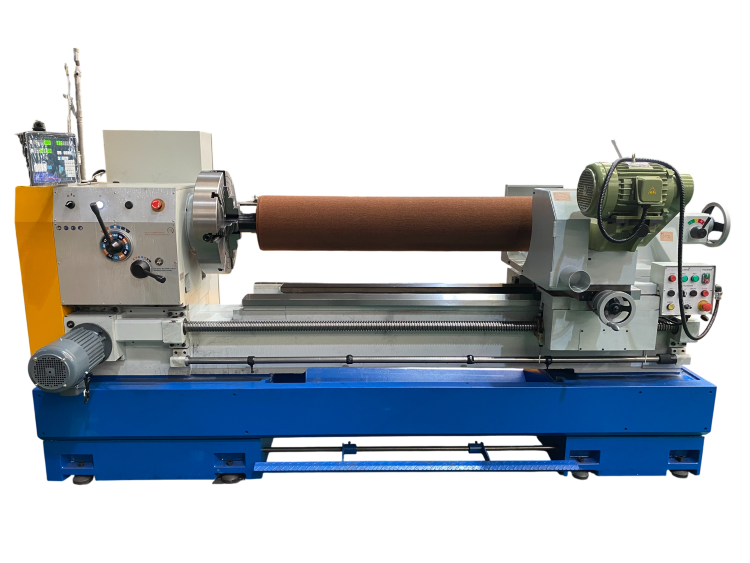

Heavy Duty Precision Lathe (16” Bed)
The spindle motor power in the series is transmitted to the spindle through pulley, belt and 12-step gear sets. It could perform heavy duty machining with high speed and high rigidity.
| Description / Model | MPB670 | MPB770 | MPB840 |
|---|---|---|---|
| Center Height | 300 mm | 335 mm | 385 mm |
| Swing over Bed | 600 mm (24”) | 670 mm (26”) | 770 mm (30”) |
| Swing over Cross Slide | 390 mm | 460 mm | 560 mm |
| Swing over Gap | 820 mm | 890 mm | 990 mm |
| Width of Gap | 450 mm | ||
| Width of Bed | 400 mm (16”) | ||
| Distance between Centers |
500 (60”), 2000 (80”), 3000 (120”),4000mm (160”) |
||
| Spindle Bore | Ø80 mm (3”) / Ø104 mm (4”) | ||
| Spindle Nose | A2-8, D1-8 (3”) / A2-11, D1-11 (4”) | ||
| Spindle Speeds (12 Steps) | 17-1200 / 15-1000Rpm | ||
| Tailstock Quill Diameter | Ø80 mm | ||
| Taper of Center | MT#5 | ||
| Quill Travel | 230 mm | ||
| Tool Size | 25 x 25 mm | ||
| Compound Rest Travel | 230 mm | ||
| Cross Slide Travel | 300 mm | 385 mm | |
| Cross Feeds | 0.025-0.35 mm (36 Kinds) | ||
| Longitudinal Feeds | 0.05-0.7 mm (36 Kinds) | ||
| Lead Screw Diameter | Ø45 mm | ||
| Lead Screw Pitch | 2TPI (Inch) or 12mm (Metric) | ||
| Threading Range, Metric | 0.8-14 mm / Pitch (65 Kinds) | ||
| Threading Range, Inch | 2-28 TPI (36 Kinds) | ||
| Module Pitch Threads | 0.5-7 M (22 Kinds) | ||
| DP. Pitch Threads | 4-56 P (36 Kinds) | ||
| Main Spindle Motor | 15 HP(Std.) | ||
| Coolant Pump | 1/8 HP | ||
| 16” Standard Accessories | 16”Optional Accessories |
|---|---|
| Main Motor | 3-Jaw Chuck |
| Auto Lubrication System | 4-Jaw Chuck |
| Coolant System | Face Plate |
| 4-Way Tool Post | Double Chuck System |
| Leveling Bolts & Pads | Steady Rest |
| Main Spindle Sleeve | Follow Rest |
| Main Spindle Center | Splash Guard |
| Tailstock Cente | Micro Bed Stopper |
| Meter / Inch Community Gear Box | Taper Attachment |
| Tool Box with Tools | Quick Change Tool Post |
| ndependent Electrical Box | Digital Readout |
| Operation & Service Manual | Rotary Quill |
| Work Light |
